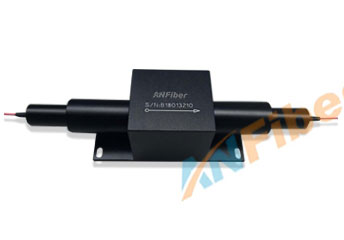

Polarization Maintaining / Polarization Insensitive Isolator 1064nm 50W

Polarization Maintaining / Polarization Insensitive Isolator 1064nm 50W

Name: Polarization Maintaining / Polarization Insensitive Isolator 1064nm 50W

Class: Polarization Maintaining

Type: Polarization Maintaining/Polarization Insensitive Isolator

: Test Report

Previous: Mini PM Filter Coupler 1X2 2X2 1310/1550nm 500mW

Next: PM Fliter Coupler 1x2 2x2 1310/1550nm 500mW

Specifications of PM/PI Isolator:

Parameters	Unit	Values
Center Wavelength (λc)	nm	1064 or Specify
Operating Wavelength Range	nm	±10
Typ. Peak Isolation	dB	32-40
Min. Isolation at 23℃	dB	26
Typ. Insertion Loss	dB	0.6
Max. Insertion Loss at 23℃, λc	dB	1.0
Min. Return Loss (Port1/Port2)	dB	50/50
Max. Polarization Dependent Loss	dB	0.15 (only for HPII type isolators)
Min. ER (only for HPMI type isolators)	dB	20 for B type, 22 for F type
DDDMax. Optical Power (CW)	W	1, 3, 5	10, 20, 30, 50
Max. Peak Power	KW	5 or Specify	10 or Specify
Package Type	-	C5	C6
Fiber Type (only for HPII type isolators)	-	HI 1060 Fiber or LMA Fiber
Fiber Type (only for HPMI type isolators)	-	PM 980 Fiber or PLMA Fiber
Max. Tensile Load	N	5
Operating Temperature	℃	-5 to +50
Storage Temperature	℃	-20 to +75

Ordering Information of PM/PI Isolator:

A	B	C	D	E	F	G
Wavelength	Package Type	Handling Power	Axis Alignment	Connector Type on Port 1, 2	Fiber Jacket on Port 1, 2	Fiber Length
06 = 1064nm X = other	C5 = Type C5 C6 = Type C6	01 = 1W 05 = 5W 50 = 50W X = other	F = Fast Axis Blocked B = Both Axis Working	N=None X=other	L = 900um Loose Tube C = 3mm Loose Cable A = 3mm Armoured Cable X=other	0.8 = 0.8m X= other

Fiber Optical Broadband Isolator(1064nm PM/PI Isolator 5W)
