1X16 Optical Switch (B Type)

1X16 Optical Switch (B Type)

Name: 1X16 Optical Switch (B Type)

Class: Optical Switch

Type: 1X16 Fiber Optic Switch

: Test Report

Previous: 1X8 Optical Switch (B Type)

Next: 1X4 Optical Switch (C Type)

1X16 Optical Switch(Single mode and Multimode)

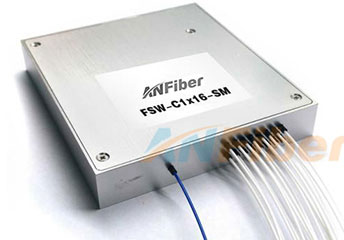

1X16 Fiber Optical Switch (B Type) connects optical channels by redirecting an incoming optical signal into a selected output fiber.1X16 Opto-Mechanical Optical Switches consists of 1 input and 16 output fiber ports that selectively transmits,redirects,or blocks optical power in a fiber optic transmission line.1X16 Fiber optical switches is designed for use in optical fiber communication networks and measurement instruments.

Features of Optical Switches:

Low Insertion Loss,Low Crosstalk

Wide Wavelength Range

High Stability,High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

Single mode and Multi-mode

Applications of Optical Switches:

Configurable OADM

MAN(Metropolitan Area Network)

Network Security and Monitoring

System Monitoring

Component Testing

R&D in Laboratory

Specifications of Optical Switches:

Parameters	Unit	ANFIBER-FSW-1X16(B Type)
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss ^{1, 2}	dB	Typ:1.2 Max: 1.6
Return Loss ^{1, 2}	dB	SM ≥ 50
Crosstalk ¹	dB	SM ≥ 55
PDL	dB	≤ 0.15
WDL	dB	≤ 0.30
Repeatability	dB	≤ ±0.05
Power Supply	V	5.0 ± 5%
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	(L)90.0×(W)80.0×(H)14 ±0.2
Note: ¹Within operating temperature and SOP. ²Excluding Connectors.

Optical Path of Optical Switches:

Single mode Multimode Latching Non-latching 850/1310/1550nm Fiber Optical Switches

Ordering Information of Optical Switches:

A	B	C	D	E	F	G
Test Wavelength	Operating Voltage	Switch Type	Fiber Type	Tube Type	Fiber Length	Connector
13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Others	5: 5V	L: Latching X:Others	SM:SM,9/125 X:Others	25:250um 90:900um X: Others	0.5: 0.5m 1.0: 1.0m 1.5: 1.5m X: Others	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

1X16 Optical Switch Single mode Multimode Latching Non-latching 850/1310/1550nm
