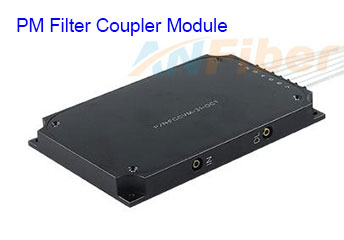

PM Filter Coupler Module (1x4/1x8 1064nm 500mW)

PM Filter Coupler Module (1x4/1x8 1064nm 500mW)

Name: PM Filter Coupler Module (1x4/1x8 1064nm 500mW)

Class: Polarization Maintaining

Type: PM Filter Coupler Module

: Test Report

Previous: PM/PI Broadband Isolator (1064nm 5W)

Next: PM Filter Coupler (2x2 1064nm 300mW)

Specifications of PM Fliter Coupler:

Parameters	Unit	1x4	1x8
Center Wavelength	nm	1064	1064
Operating Wavelength Range	nm	+/-30	+/-30
Insertion Loss	dB	≤8, Typ. 7.5	≤11.5, Typ. 11
Wavelength Dependent Loss	dB	≤0.5, Typ. 0.3	≤0.5, Typ. 0.3
Ports IL Uniformity	dB	≤0.8	≤1.0
Return Loss	dB	≥50	≥50
Directivity	dB	≥50	≥45
Extinction Ratio(only for B Type)	dB	≥20	≥17
Extinction Ratio(only for F Type)	dB	≥23	≥23
Polarization Dependent Loss(only for B Type)	dB	≤0.1	≤0.15
Temperature Dependent Loss	dB/℃	≤0.006	≤0.008
Fiber Type		PM Panda Fiber	PM Panda Fiber
Operating Temperature	℃	-5 to+70	-5 to+70
Storage Temperature	℃	-40 to +85	-40 to +85
Package Dimensions	mm	16014010	16016010

Ordering Information of PM Fliter Coupler:

A	B	C	D	E	F	G
Center Wavelength	Potrs Configuration	Splitting Ratio	Working Axis	Connector Type	Fiber Type	Fiber Length
06 = 1064nm	0104 = 1x4 0108 = 1x8	BA = Balance X = other	F = Fast Axis Blocked B= Both Axis Working	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X = other	L = 900um Loose Tube C = 3mm Loose Cable X = other	0.5 = 0.5m X=other

Polarization Maintaining Fiber Fliter Coupler Module (1x4/1x8 1064nm)
