Mini 1X1 Optical Switch (single-ended)

Mini 1X1 Optical Switch (single-ended)

Name: Mini 1X1 Optical Switch (single-ended)

Class: Optical Switch

Type: Mini 1X1 Fiber Optic Switch

: Test Report

Previous: Mini Dual 1X2 Optical Switch

Next: Mini 1X2 Optical Switch (single-ended)

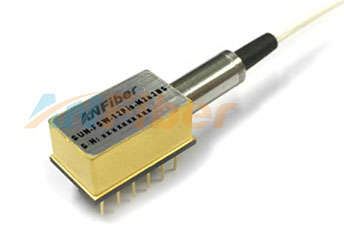

Mini 1X1 Optical Switch(Single-ended Single mode)

Mini 1X1 Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.The 1x1 Opto-Mechanical Optical Switches consists of 1 input and 1 output fiber ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.1x1 optical switches is designed for use in optical fiber communication networks and measurement instruments.

Features of Optical Switches:

Low Insertion Loss

Wide Wavelength Range

High Stability,High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

Single mode and Multi-mode

Applications of Optical Switches:

Configurable OADM

MAN(Metropolitan Area Network)

Network Security and Monitoring

System Monitoring

Component Testing

R&D in Laboratory

Specifications of Optical Switches:

Parameters	Unit	ANFIBER-FSW-Mini 1X1
Fiber Type		Single mode
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550
Insertion Loss ^{1, 2}	dB	Typ: 0.4 Max: 0.6
Return Loss ^{1, 2}	dB	SM≥50
Crosstalk ¹	dB	SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.02
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥10 Million
Voltage Pluse Width (Latching)	ms	≥ 20
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5 ~ 95
Weight	g	13
Dimension	mm	(L )20×(W)9.5×(H)8.5 ±0.2
Note: ¹Within operating temperature and SOP. ²Customization is available.

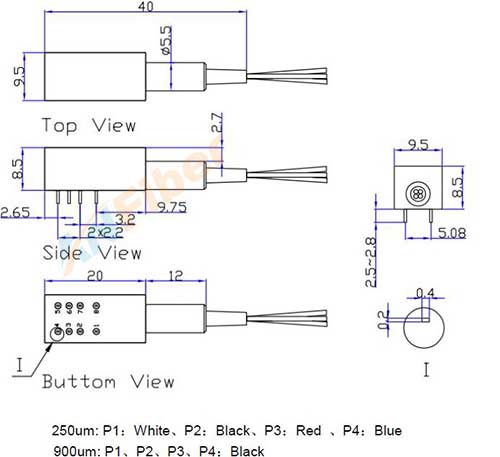

Dimension of Optical Switches:

Single-ended Single mode Latching Non-latching 1310/1550nm Fiber Optical Switches

Ordering Information of Optical Switches:

A	B	C	D	E	F	G
Test Wavelength	Operating Voltage	Switch Type	Fiber Type	Tube Type	Fiber Length	Connector
13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Others	3: 3V 5: 5V	L: Latching N:Non-latching	SM:SM,9/125 X:Others	25:250um 90:900um X: Others	0.5: 0.5m 1.0: 1.0m 1.5: 1.5m X: Others	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

Mini 1X1 Optical Switches Single-ended Single mode Latching Non-latching 1310/1550nm
